Downspout Boot Coatings
Uncoated

Uncoated cast iron is a naturally appealing and ruggedly beautiful finish option that is increasingly popular in architectural design. In addition to aesthetic considerations, uncoated cast iron downspout boots are more environmentally friendly, as the VOC and carbon emitting processes associated with coating and recoating are avoided. As an added bonus, uncoated cast iron downspout boots are supplied at lower prices and faster lead times.





Cast iron does not require a coating to effectively resist corrosion or weathering. In fact, bare cast iron is among the most corrosion resistant building materials available. As cast iron is exposed to normal environmental conditions it will oxidize, or rust. The oxidation of carbon-based metals like cast iron will transition from orange to dark brown colors over time, depending on age and exposure. After a period of time the cast iron develops an oxide layer, or patina, on its surface which acts as a highly durable, visually appealing and 100% maintenance-free finish.

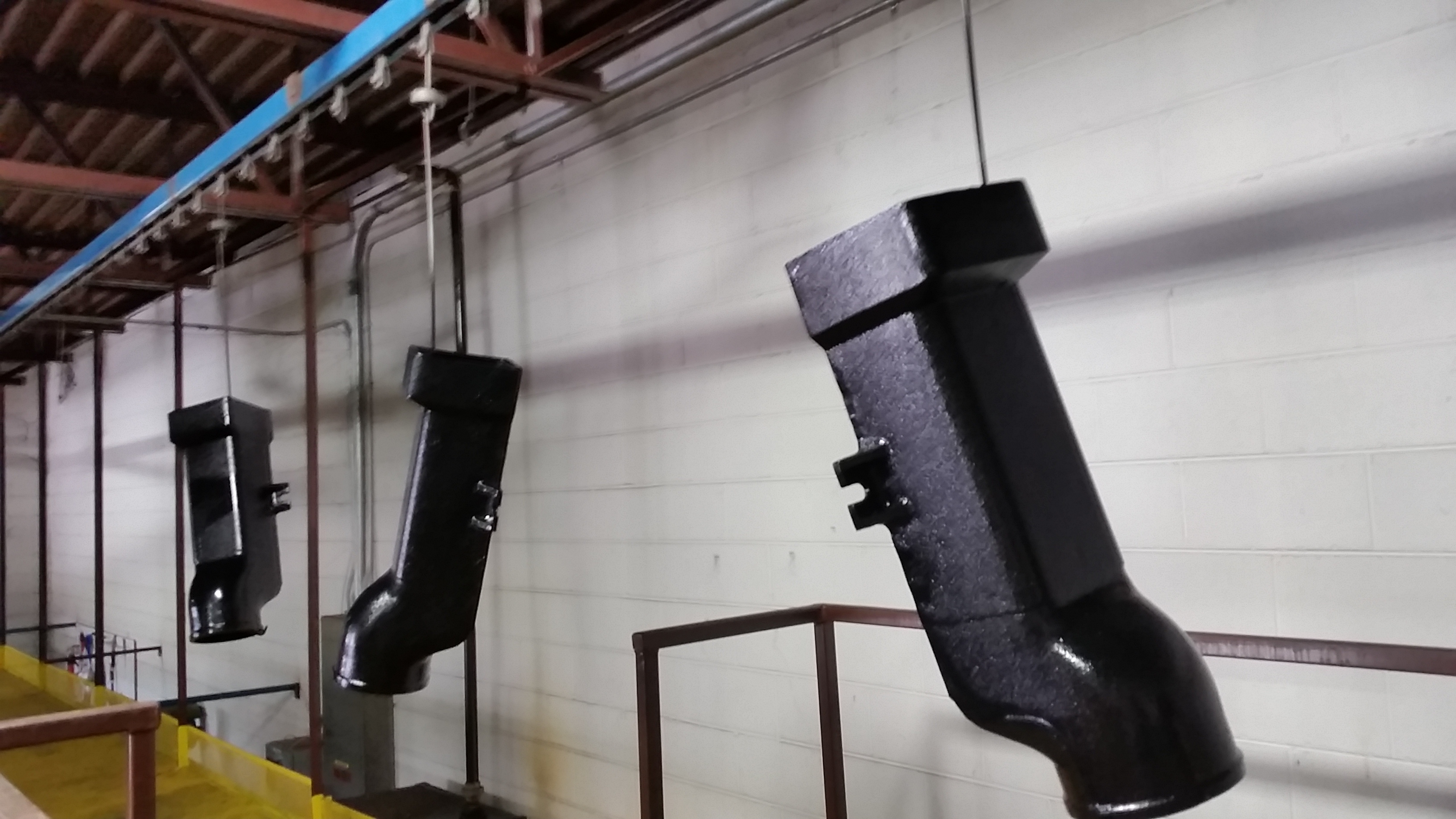

Powder Coat

Factory applied powder coating is offered in a wide range of nearly 200 different colors. JR Hoe cast iron downspout boots receive a proprietary 2—coat powder coating system developed through in—house quality assessment and 3rd party salt spray testing. Powder coating for cast iron downspout boots is an exceptionally durable, Wear—resistant and attractive finish option.






Powder coating is a process that involves the application of organic powder by electrostatic attraction to metal. creating a smooth. durable surface finish. In addition to superior longevity and near resistance. powder coating is a more efficient and environmentally friendly coating process than traditional wet paint. Any overspray with powder coating is reclaimed and re—used. and there is no use of environmentally harmhul materials since chemical solvents and VOCs are not required.

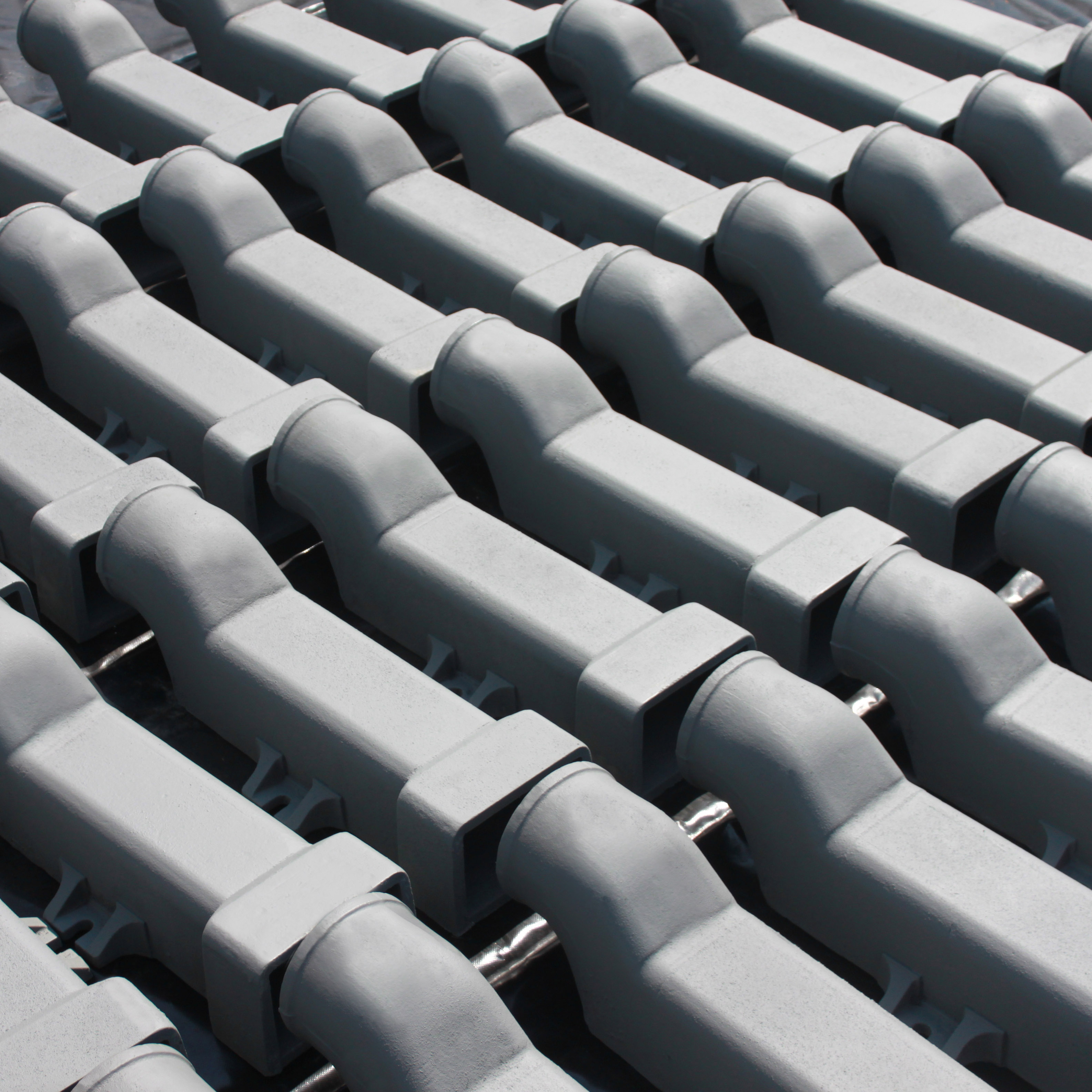

Primer Coat

Some projects may require the downspout boots to be field painted, in which case a factory primer coat is recommended. A rust-inhibitive primer will prevent any oxidation of the iron surface before a high quality exterior grade top coat is applied in the field by the site contractor or painter. It should be noted that primer coatings are intended only as a barrier coating that will protect the casting until the finish coat is applied. Primer coated parts should not be left exposed to the elements and the finish coat should be applied quickly after primer coated parts are received.





Drawing Selector

Please choose from the drop down menus provided below to select the correct product drawing or select get a quote.

{{field.label}}

Quantity

{{ProductNumber}}

{{options.coating}} mounting {{options.pipe_size}}" {{options.pipe_material}} coupling

Your Product

Product Preview

Additional drawings available upon request.





Frequently Asked Questions

What coating options are available for cast iron downspout boots?
Three finish paths are offered: uncoated bare cast iron, a factory primer coat for field painting, and a factory applied powder coat in a wide range of nearly 200 colors. The right choice depends on the desired appearance, the painting scope in the project, and maintenance expectations.



Does bare cast iron need a coating to resist corrosion?
No. Cast iron does not require a coating to effectively resist corrosion or weathering, and bare cast iron is among the most corrosion resistant building materials available. As it weathers, the surface oxidizes from orange toward dark brown and develops a stable oxide layer, or patina, that acts as a durable, maintenance free finish.



Why would a designer choose the uncoated finish?
Uncoated cast iron offers a naturally appealing, rugged finish that is increasingly popular in architectural design. It is also the most environmentally friendly option because the VOC and carbon emitting processes of coating and recoating are avoided, and uncoated boots are supplied at lower prices and faster lead times.



How does the factory powder coating process work?
Powder coating applies organic powder to the metal by electrostatic attraction, then cures it into a smooth, durable surface. J.R. Hoe uses a proprietary two coat system developed through in-house quality assessment and third party salt spray testing, with a multi-stage prewash cycle before application.



How durable is the powder coat finish in the field?
The two coat powder system is an exceptionally durable, wear resistant finish designed for the impacts and abrasion a boot receives at grade. It significantly outperforms field applied wet paint in longevity and appearance retention, which is why it is the standard factory finish for color matched projects.



Is powder coating environmentally responsible?
Yes. Powder coating requires no chemical solvents and emits no VOCs, and any overspray is reclaimed and reused rather than wasted. It is a more efficient and environmentally friendly process than traditional wet painting.



When should I specify the primer coat option?
Specify primer when the project requires the boots to be field painted to match adjacent work by the site painting contractor. The rust inhibitive primer prevents oxidation of the iron surface until the exterior grade top coat is applied in the field.



Are there limitations on how long primer coated boots can sit exposed?
Yes. The primer is intended only as a barrier coating that protects the casting until the finish coat is applied. Primer coated parts should not be left exposed to the elements, and the finish coat should be applied promptly after the parts are received on site, which should be noted in the painting specification.



How many powder coat colors are available and can I get a color chart?
The standard palette includes nearly 200 colors, and a downloadable color chart is available on the website. Colors span the range needed to match brand standards, school colors, and common architectural metal finishes.



Which coating is best for coastal or deicing salt environments?
Both bare cast iron and the powder coated finish perform well in aggressive environments; the powder system is specifically validated with third party salt spray testing. Bare iron simply patinas and requires no maintenance, while powder coat holds a specific color, so the choice is primarily aesthetic rather than a durability tradeoff.
