Downspout Boot Customization
Custom Logos

Custom cast iron downspout boots add a rare and beautiful element to any building design. J.R. Hoe cast iron downspout boots are offered with corporate logos, lettering or custom designs to be cast into the top bell or front panel of the downspout boot. This customization offers a genuinely original design feature and a distinctive aesthetic element to any building.


Custom Sizes

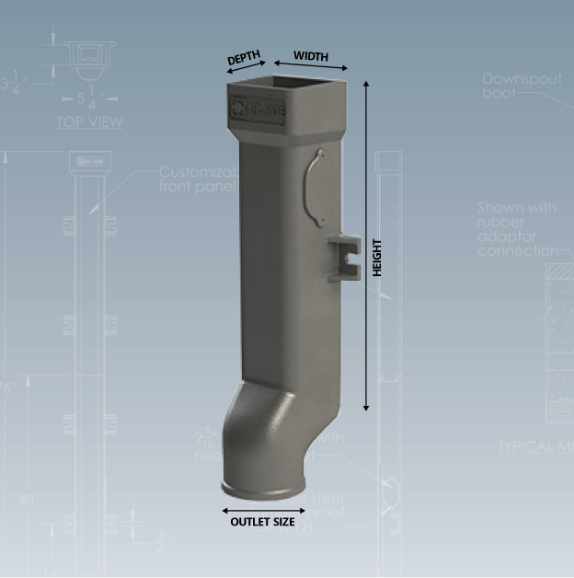

The J.R. Hoe standard product line offers downspout boots in hundreds of different combinations of top bell sizes, body sizes, cleanout options and outlet types to fit the needs of virtually any project. However, if a project requires a unique design not featured in the standard product line, J.R. Hoe is able to design and prototype an original downspout boot to the desired specifications.



Drawing Selector

Please choose from the drop down menus provided below to select the correct product drawing or select get a quote.

{{field.label}}

Quantity

{{ProductNumber}}

{{options.coating}} mounting {{options.pipe_size}}" {{options.pipe_material}} coupling

Your Product

Product Preview

Additional drawings available upon request.





Frequently Asked Questions

Can a logo or lettering be cast into a downspout boot?
Yes. J.R. Hoe offers custom cast iron downspout boots with corporate logos, lettering, or custom designs cast directly into the top bell or the front panel of the boot. Because the artwork is cast into the iron rather than applied, it is permanent and cannot peel, fade, or be pried off.



How is custom artwork translated into the casting?
J.R. Hoe uses 3D modeling software to incorporate logos and branding elements into its standard downspout boot designs before pattern and mold production. The process adds little to product cost, and the factory works with clients through the design steps to bring the concept to a production casting.



What types of projects most often use custom branded boots?
School specific branding is especially popular in K-12 and higher education work, where custom boots create a unique identity at entrances, playgrounds, courtyards, and recreation facilities. Corporate logos are also cast for commercial, athletic, and institutional clients seeking a distinctive architectural feature.



What if my project needs a size that is not in the standard product line?
The standard line covers hundreds of combinations of top bell sizes, body sizes, cleanout options, and outlet types, but when a project requires a unique design, J.R. Hoe can design and prototype an original downspout boot to the desired specifications. Provide your downspout size, boot length, outlet requirements, and pipe connection and the factory will engineer the part.



Can custom boots include non-standard offsets or outlet geometry?
Yes. Custom cast designs and custom fabricated boots can accommodate special offset dimensions, atypical outlet positions, and unusual piping configurations that the standard O, A, and N series do not cover. The fabricated line is often used where multiple bends or lateral transitions are required.



Does customization delay the delivery schedule?
Custom castings require design, approval, and pattern work before production, so they carry longer lead times than in-stock standard boots. Submittal drawings are provided for approval before casting, and the factory can advise realistic lead times at quote stage, so engage them early in the project schedule.



Will a custom logo boot cost significantly more than a standard boot?
Adding logos or lettering to a standard design through 3D modeling adds little to product cost according to the manufacturer. Fully custom sizes and geometries involve more engineering and pattern work, so pricing is quoted per project.



Can I combine a custom logo with a powder coat color?
Yes. Custom branded boots can be supplied bare, primer coated, or powder coated in the standard color range, so a school or team can pair a cast logo with its exact colors. Raised cast graphics remain legible under a powder coat finish.



How should a custom downspout boot be captured in my specifications?
Specify the basis of design as J.R. Hoe custom cast iron downspout boot, reference ASTM A48 Class 30B gray iron, describe the required bell size, length, outlet type, cleanout, coating, and artwork, and require submittal drawings for approval before fabrication. The factory can assist with specification language for the custom scope.



What information should I send to start a custom design?
Send the downspout profile and dimensions, desired boot length, outlet style and receiving pipe size and material, wall construction and mounting constraints, coating and color, and vector artwork for any logo or lettering. The contact form, info@downspoutboots.com, or 1-800-245-5521 all reach the design team.
